Description

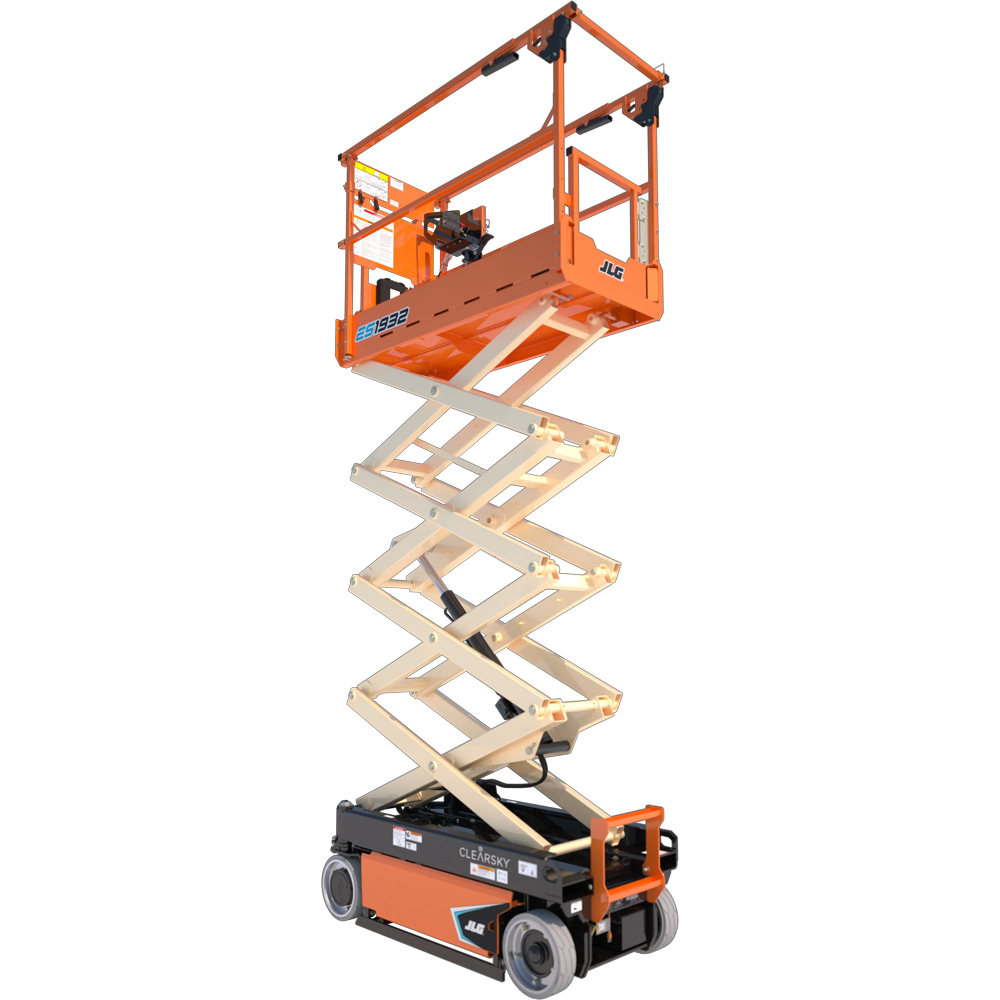

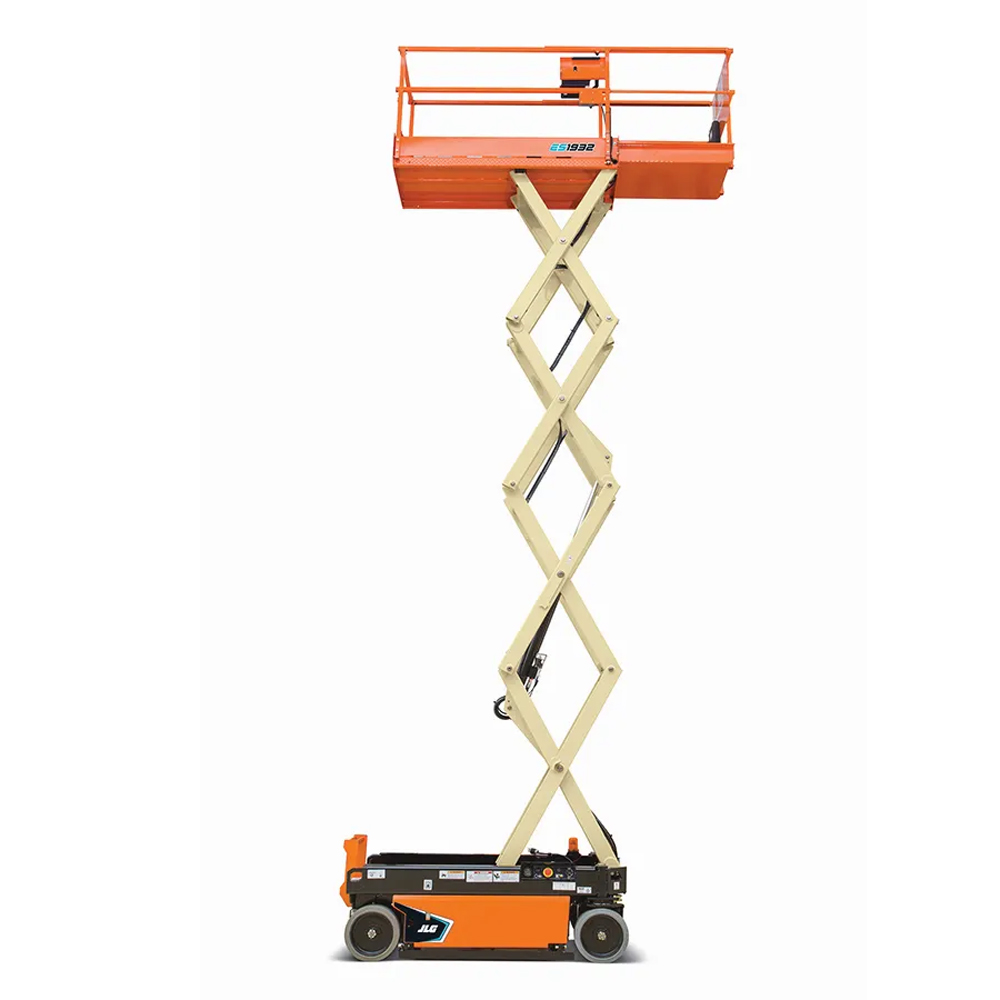

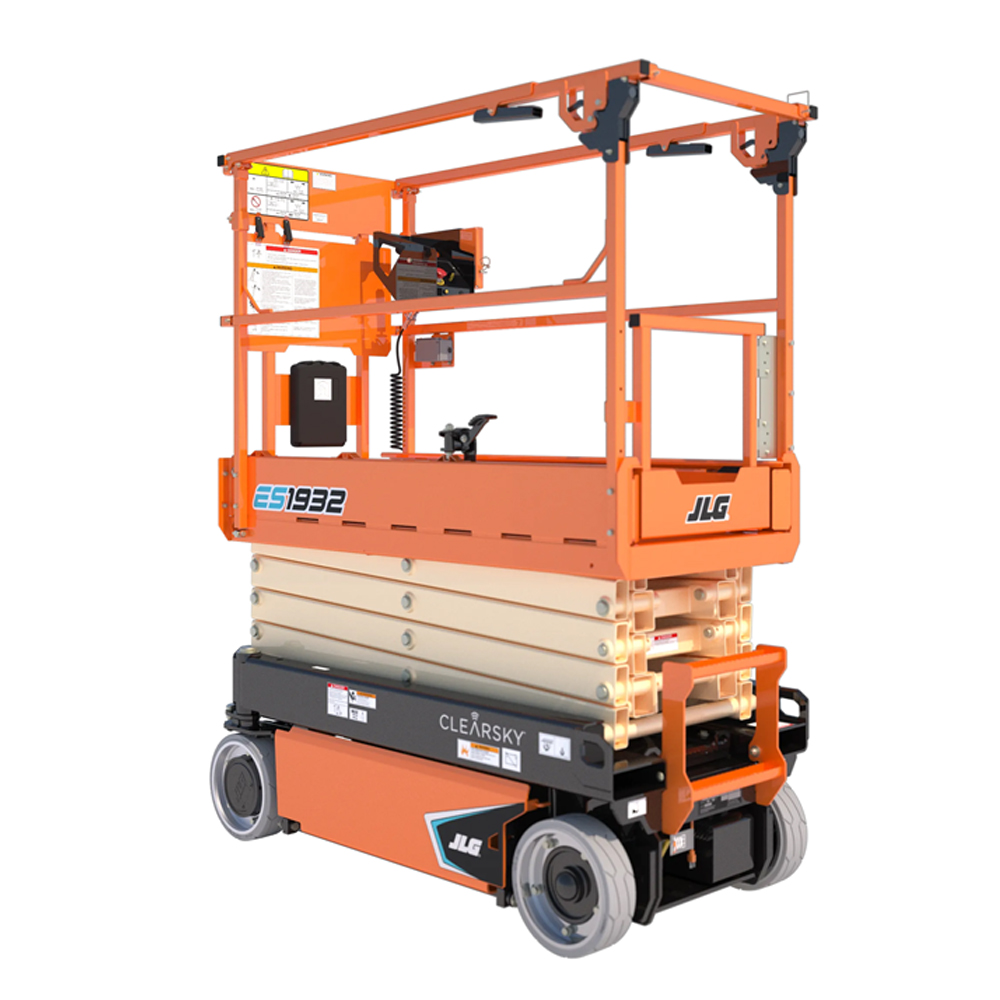

The JLG ES1932 Electric Scissor Lift is a compact, high-performance mobile access platform designed for safe and efficient working at height. With a platform height of 19 ft (5.8 m) and a narrow machine width, this electric scissor lift is ideal for indoor maintenance, installation, and warehouse operations where manoeuvrability is essential.

Powered by an electric drive system, the ES1932 delivers quiet, emission-free operation with up to double the battery life of standard scissor lifts. The machine features JLG’s QuikFold rail system, allowing platform rails to be folded quickly for transport and storage.

Operator experience is enhanced with practical features such as a USB charger, phone holder, proportional controls, and a removable platform control box. A wide range of safety systems, including pothole protection, tilt alarms, load sensing, and dynamic braking, ensures safe operation on site.

Key Features and Benefits

Electric scissor lift with 19 ft platform height
230 kg platform capacity
Suitable for indoor and limited outdoor use
Electric drive system for quiet, emission-free operation
Extended battery life compared to standard models
QuikFold folding rail system for fast setup
Foot-actuated deck extension
Proportional drive and lift controls
Active pothole protection system
Tilt alarm with visual indicator
Load sensing safety system
USB charger and phone holder in platform
Removable ladder and self-closing gate
Compact dimensions for confined work areas

Standard Features

AC receptacle in platform
Analyzer diagnostic port
Battery condition indicator
CAN-enabled charger
Dynamic braking system
Diamond tread steel deck
Lanyard attachment points
LED motion and amber beacon
Manual descent cable
Movable and removable controls
Self-closing entry gate
Steel swing-out component doors
Scissor maintenance prop
Greaseless kingpin joints

Performance Specifications

Platform height elevated
19 ft / 5.8 m

Platform capacity
507 lb / 230 kg

Capacity on platform extension
265 lb / 120 kg

Number of occupants
Indoor: 2
Outdoor: 1

Lift / lower time (no load)
20 / 27 seconds

Lift / lower time (rated load)
25 / 26 seconds

Maximum drive height
Fully elevated

Machine weight
3,450 lb / 1,565 kg

Gradeability
25 percent

Drive speed (lowered)
3.0 mph / 4.8 km/h

Drive speed (raised)
0.5 mph / 0.8 km/h

Turning radius inside
Zero

Turning radius outside
66 in / 1.7 m

Power and Drive

Batteries
4 x 6V 220 Ah

Charger
27 amp universal charger

Drive system
24V AC electric drive

Hydraulic system capacity
1.85 gal / 7 L

Dimensions

Platform height lowered
38.6 in / 1.0 m

Machine height rails raised
82.8 in / 2.1 m

Machine height rails lowered
78.2 in / 1.99 m

Platform width
25.4 in / 0.64 m

Platform length
62.7 in / 1.59 m

Platform extension
36 in / 0.91 m

Machine width
32 in / 0.81 m

Machine length
68.7 in / 1.7 m

Wheelbase
53 in / 1.3 m

Ground clearance
2.8 in / 7 cm
