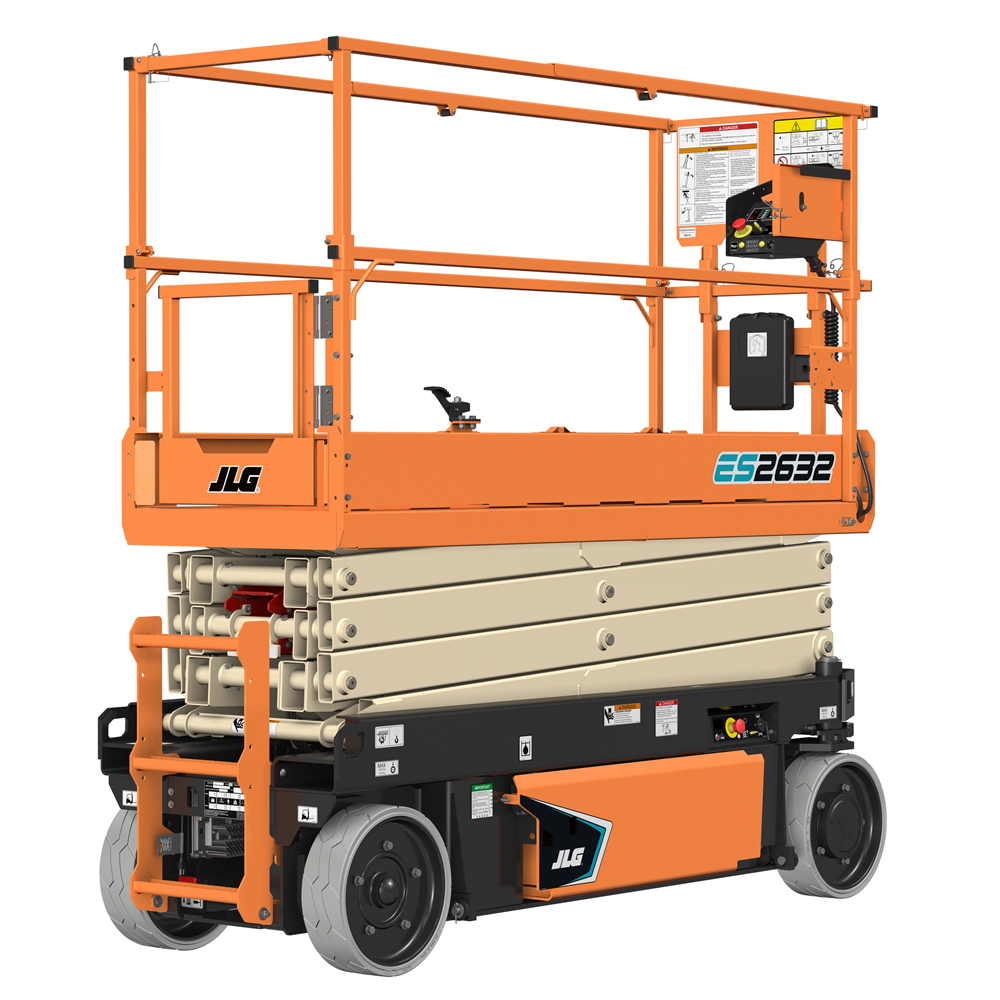

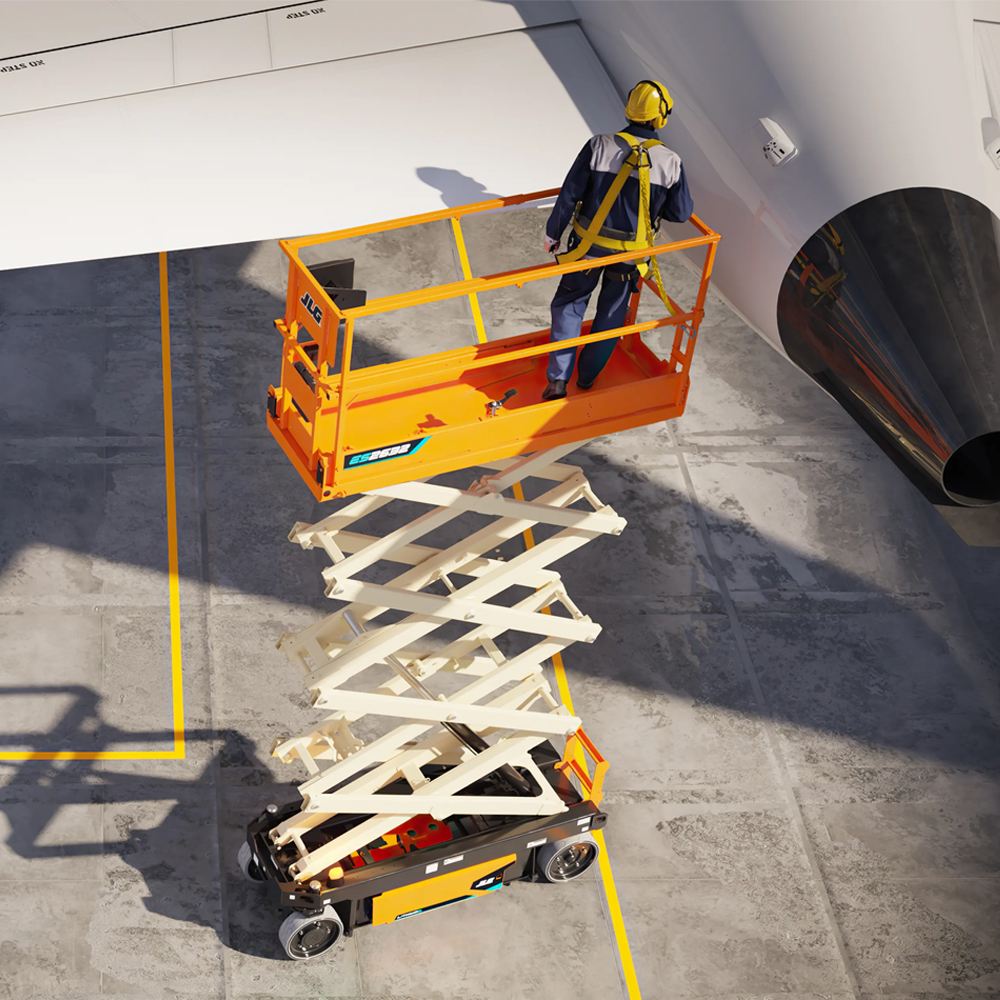

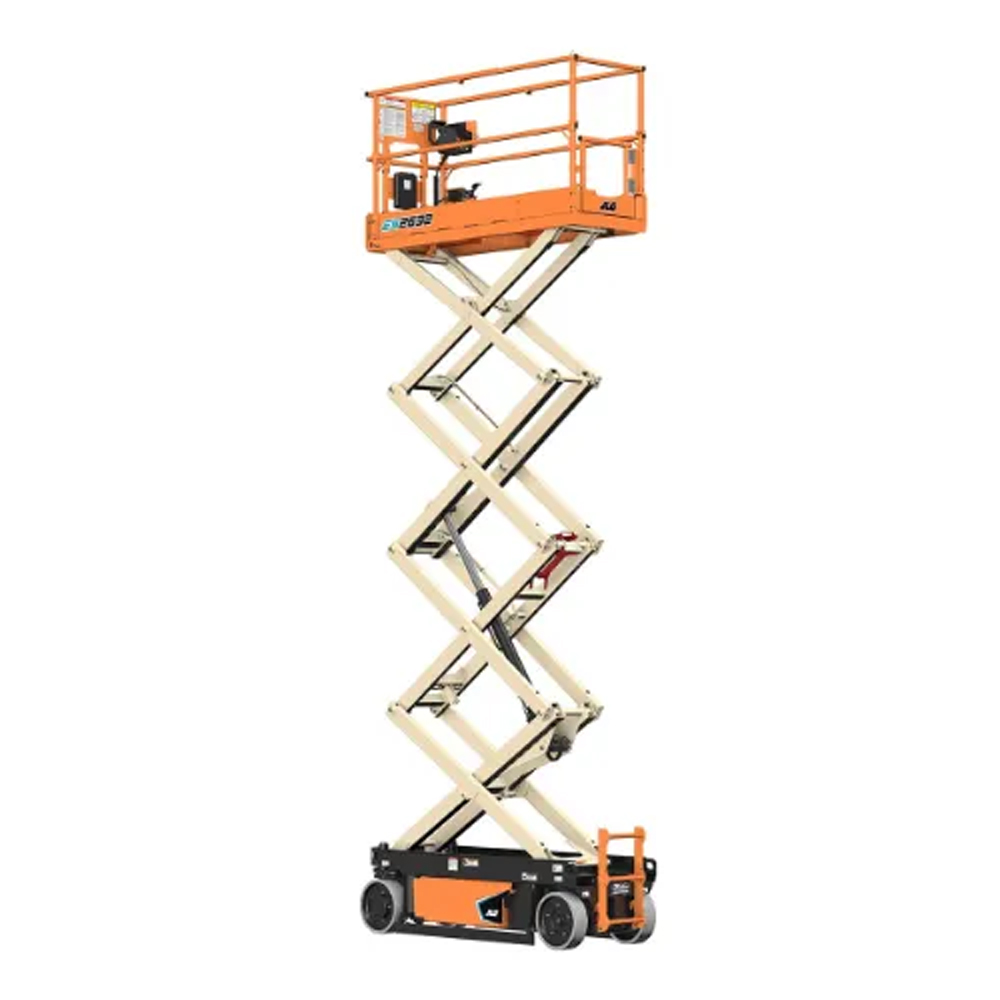

The JLG ES2632 Electric Scissor Lift is a compact and efficient mobile access platform designed for safe working at height in indoor and controlled outdoor environments. With a platform height of 7.77 m and a working height of up to 9.77 m indoors, this electric scissor lift is ideal for maintenance, installation, and warehouse operations requiring reliable vertical access.
Its narrow machine width allows the ES2632 to pass through standard doorways and operate in tight aisles, making it well suited to confined workspaces. The DC electric drive system reduces operating costs while delivering quiet, emission-free performance, making it suitable for sensitive indoor areas.
Operator productivity is enhanced with a roll-out deck extension, proportional controls, fold-down handrails, and a removable platform console. Integrated safety systems including pothole protection, tilt sensing, load monitoring, and automatic braking provide safe and stable operation on site.
Key Features and Benefits
-
Electric scissor lift with 7.77 m platform height
-
Working height up to 9.77 m indoors
-
230 kg indoor platform capacity
-
125 kg outdoor platform capacity
-
Narrow width design for tight aisles and doorways
-
0.86 m roll-out deck extension
-
Fold-down handrails for transport and access
-
Proportional drive and lift controls
-
Dual motor electric drive and steer
-
Load sensing safety system
-
Active pothole protection
-
Tilt alarm and slope monitoring
-
USB charger and phone holder
-
Diamond tread steel platform deck
Standard Features
-
Swing-out entry gate
-
Removable platform control box
-
Lanyard attachment points
-
Proportional joystick drive control
-
Programmable performance settings
-
On-board self-diagnostic system
-
Manual descent system
-
Emergency brake release
-
Automatic dual wheel brakes
-
Analyzer diagnostic port
-
Battery condition indicator
-
Forklift pockets and lifting lugs
-
Amber beacon light
Performance Specifications
Working height
Indoor 9.77 m
Outdoor 8.4 m
Platform height elevated
Indoor 7.77 m
Outdoor 6.4 m
Platform capacity
Indoor 230 kg
Outdoor 125 kg
Capacity on deck extension
120 kg
Number of operators
Indoor 2
Outdoor 1
Lift / lower time (no load)
33 / 36 seconds
Lift / lower time (rated load)
39 / 29 seconds
Drive speed lowered
4.8 km/h
Drive speed elevated
0.8 km/h
Gradeability
25 percent
Turning radius inside
Zero
Turning radius outside
2.09 m
Machine weight
1,996 kg
Power and Drive
Drive motors
24V DC
Hydraulic pump motor
24V DC / 3 kW
Batteries
4 x 6V AGM 213 Ah
Charger
27 amp automatic
Hydraulic system capacity
18 L
Dimensions
Platform height lowered
1.10 m
Stowed height
2.22 m
Stowed height with rails folded
1.77 m
Machine width
0.81 m
Machine length
2.40 m
Wheelbase
1.88 m
Ground clearance
98 mm
Platform width external
0.77 m
Platform length external
2.30 m
Platform extension
0.86 m
